| Business Type | Exporter, Trader |
| Engine | Cummins QSB7, 169 KW @ 2000 Rpm (optional Dongfeng Cummins 194 KW) |
| Hydraulics | KPM Hydraulic System With K5V160DT Pump, Working Pressure 34.3 MPa |
| Performance | Bucket Force 145 KN, Arm Force 179 KN, Traction Force 283 KN |
| Click to view more | |
Product Details
Digging Capability
Max Digging Depth 6,480 Mm (optional 7,002 Mm), Max Reach 10,737 Mm
Mobility
Travel Speed 4.6 / 2.8 Km/h, Gradeability 35°, Ground Pressure 65.1 KPa
Dimensions
Operating Size 10,881 × 3,190 × 3,280 Mm, Tail Swing Radius 3,418 Mm
Working Equipment
Boom 6,250 Mm, Arm 3,050 Mm
Operator Comfort & Safety
Air-conditioned ROPS Cabin, Ergonomic Controls, LED Lights
Additional Features
Hammer Piping Provision, Oil Cooler, OEM Customization Options

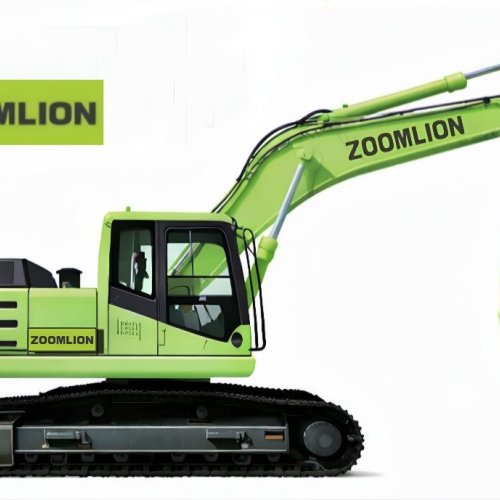

Looking for "Excavators" ?
