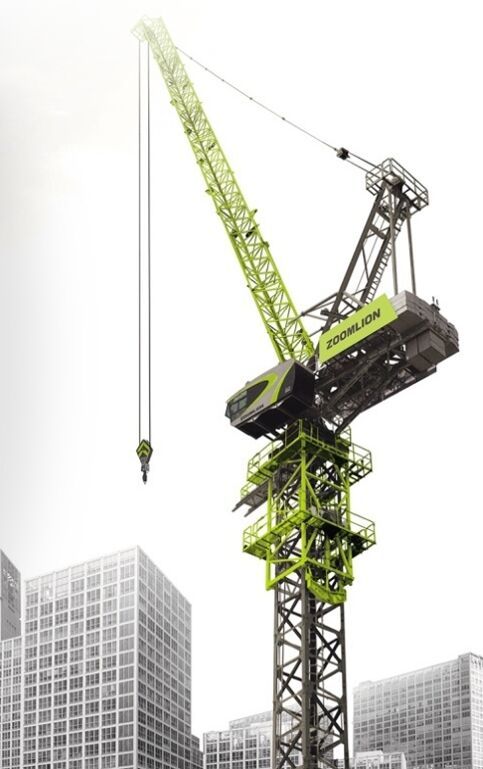

Tower Cranes

 TL275-16T highlight

 Tower Cranes – The Future of Lifting Technology

•  Global Safety Design – Anti-fall, anti-collision, anti-overload, and anti-typhoon protection.
• 5G Remote Control & AI Features – Real-time monitoring, troubleshooting, and intelligent tracking.
• ETI Digital Control System – Ensures smooth operations with anti-overload technology.
• High-Efficiency Planetary Reducer – 96% efficiency with no oil change required for 5 years.
• Automotive-Grade Electrophoresis Coating – Corrosion-resistant, lasting 5+ years without rust.
• Extreme Weather Resistance – Designed to withstand tornedo up to Category 17.
• One-Click Calibration & Modular Setup – Faster commissioning and simplified installation.

Key Features

• Exceptional Load Capacity: Designed for demanding construction projects, the WA90-6A offers robust load-handling with a high-performance engine.
• Efficient and Durable: Built to withstand rigorous conditions, this crane is energy-efficient and has an extended lifespan, reducing maintenance and operational costs.
• Advanced Mechanisms: Equipped with high-precision mechanisms for hoisting, trolleying, and slewing, providing smooth and precise movement.
• Safety and Quality: Comes with a comprehensive machinery test report and inspection certification, ensuring quality and customer confidence.

Specifications

• Series: WA90-6A
• Tower Structure:
• Mast Reactions & Anchorages: 1.6m – E2
• Counter-Jib Ballast: 2.0 t / 1.3 t (t) m

Mechanisms:

• Power Supply: 380 V (±10%), 50 Hz
• Hoisting Speed: 0-100 m/min
• Slewing Speed: 0 - 0.8 r/min
• Max. Trolleying Speed: 25 m/min
• Total Power: 35.5 kW

Load Diagrams:

• Various load-bearing capacity configurations to adapt to construction demands.

Dimensions and Weight:

Slewing Crane Part:

• Length (L): 11.83 m, Width (B): 1.15 m, Height (H): 0.61 m, Weight: 2590 kg (±5%)

Tower Section Standard Module:

• Length: 1.6 m - TC16P40, Height: 5.94 m, Width: 2.08 m, Weight: 1130 kg

Counter Jib and Additional Components:

• Counter-Jib Dimensions: Length 5.16 m, Width 1.87 m
• Trolley Mechanism, Pulley Block, Cabin, Hoisting and Trolleying Mechanisms

Key Features

• Exceptional Lifting Capacity: This tower crane has an impressive 8-ton rated loading capacity, suitable for heavy construction projects. Its large power engine and robust design ensure efficient and reliable performance for demanding construction sites.
• Long Lifetime and Energy-Saving: Designed to minimize maintenance costs and environmental impact, this crane offers a long lifetime and energy-saving features, aligning with sustainable construction practices.
• Advanced Safety Features: Includes a 1-year warranty on core components like the engine and pump, offering peace of mind. Comes with a machinery test report and video outgoing-inspection for quality assurance.
• Versatile and Durable: Ideal for industries such as construction, energy, and mining, this crane adapts to diverse project needs. Its durable build and 1-year warranty ensure reliability.
• High-Quality Construction: Manufactured by Zoomlion, a reputable brand, this crane is built with high-quality components for excellent performance and durability.

Specifications

• Rated Loading Capacity: 8 Ton
• Max. Lifting Height: 219.2 m
• Span: 60 m
• Brand Name: Zoomlion
• Core Components: Engine, Pump
• Place of Origin: China
• Warranty: 1 Year
• Weight: 43,000 kg
• Video Outgoing-Inspection: Provided
• Machinery Test Report: Provided
• Application: Construction

Unique Selling Points

• Attributes: Long lifetime, Energy-saving, Large power engine, Environmental
• Color Options: Aurora green, Sky grey, Gravel ash
• Maximum Lifting Weight of Cantilever End: 1.5 t
• Maximum Independent Height: 40 m
• Maximum Tower Height: 219.2 m
• Counter-Weight: 18.6 t
• Total Power: 30 kW
• Slewing Speed: 0-0.8 r/min
• Trolleying Speed: 0-100 m/min
• Travelling Speed: 0-25 m/min
• Weight with Max Free-Standing, Max Jib: 43 t

Main Specification:

Max lifting capacity: 6 Ton Tip load capacity: 1 Ton Freestanding height: 40M Jib Length: 60M   1. Performance parameters of WA6010-6a: performance parameters and technical indexes reach both domestic and international advanced level. • Max. jib length: 60m; Jib length under different assembling modes can decrease progressively by 5 meters and the Min. jib length is 30 meters. • Max. lifting capacity: 6t; • hoisting capacity at jib tip:1t; • lifting moment 80 t.m; • Hoisting mechanism: H25FC15-440; power:25kW; rope capacity: 440m; • Slewing mechanism:S40CA-100LA10/12A;S40CN-100LA10/12A; power:2×4 • Trolleying mechanism: T45FC65-B; power:4kW • Types of tower crane: stationary crane with embedded outriggers, stationary crane with embedded bolts, stationary crane with under-frame and mobile tower crane. 2. Electrical control system With PLC control, the electrical control system enjoys better reliability and safety. Produced by professional manufacturers with advanced foreign technology, the electrical elements feature service lives that are 3 or 4 times longer than that of domestic products, less faults, easy maintenance and repair as well as reliable operation. 3. Technical features • The crane boasts of multiple operation modes and wide application; The crane can work in different forms: stationary crane with embedded outriggers, stationary crane with under-frame, stationary crane with embedded bolts and crane anchored to wall, thus being applicable to various construction projects. • The complete machine adopts internationally well-received beautiful shape; • The crane features high working speed and excellent speed regulation performance. Stepless speed regulation by frequency control, the world's most advanced solution, is adopted for the trolleying mechanism and slewing mechanism, thus ensuring more stable and reliable operation ; • The cab is independently installed externally with good vision and large inner space, thus offering a good working environment for operators; • A variety of safety devices are equipped, which are all mechanical or mechatronic products that are applicable to severe working conditions, so as to ensure the tower crane's reliable operation.
